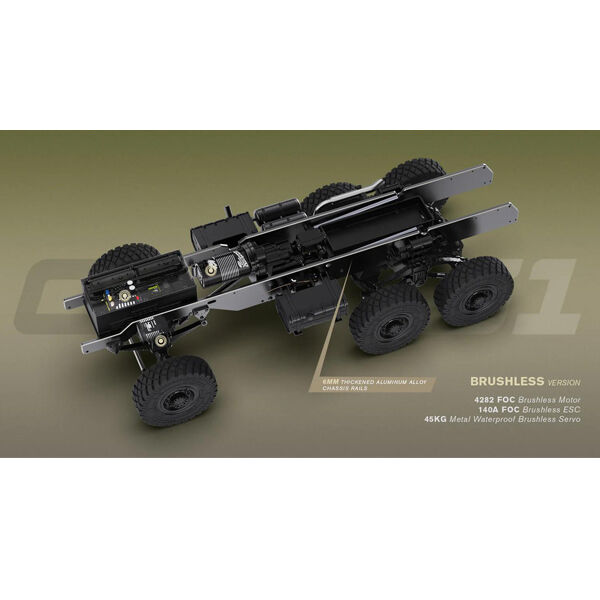

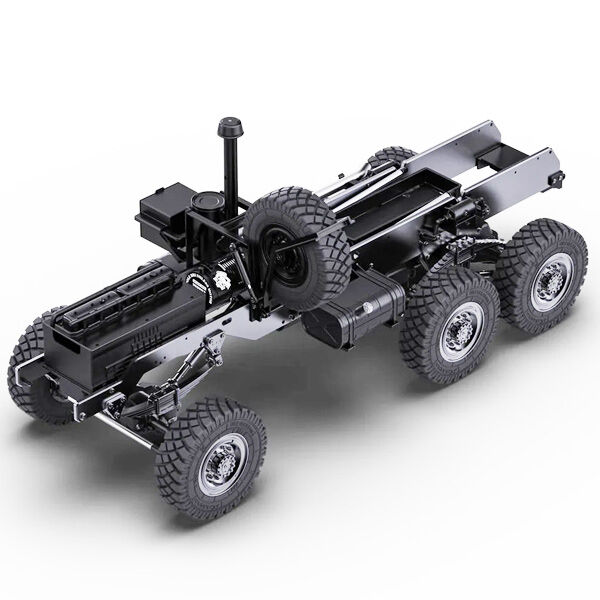

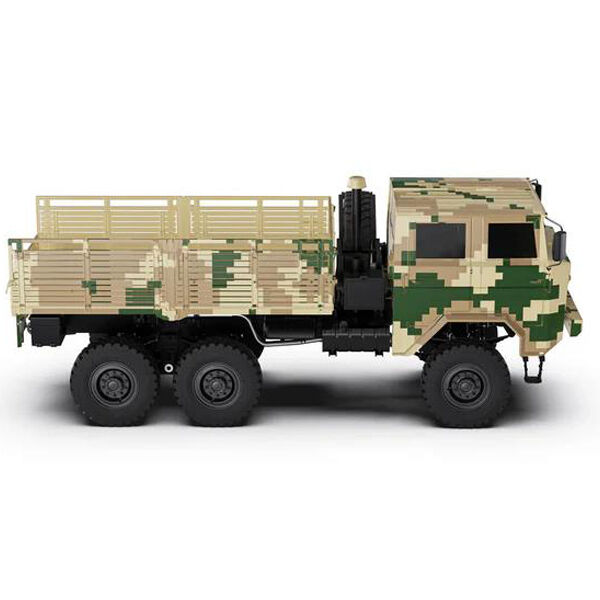

The HY6 truck is not simply a scale model — it is a purpose built heavy duty truck engineered for demanding terrain. At its core are 6 mm thick CNC machined aluminium chassis rails, delivering exceptional torsional rigidity rarely found in RC vehicles. This structural integrity continues to the rear with a one piece 6 mm aluminium cargo bed floor, designed to carry substantial loads without flex or distortion.

The suspension system uses a traditional leaf spring layout, faithfully replicating the load bearing characteristics of the full size vehicle. For users seeking increased articulation, the platform also supports oil filled shock upgrades without modification.

Climbing Performance

The HY6 delivers controlled, progressive throttle response with ample torque, enabling confident operation on steep gradients and uneven terrain including rock, grass, and sand.

Integrated Scale Lighting System

A fully linked lighting package provides ten selectable modes, recreating authentic real world vehicle lighting while improving visibility during low light operation.

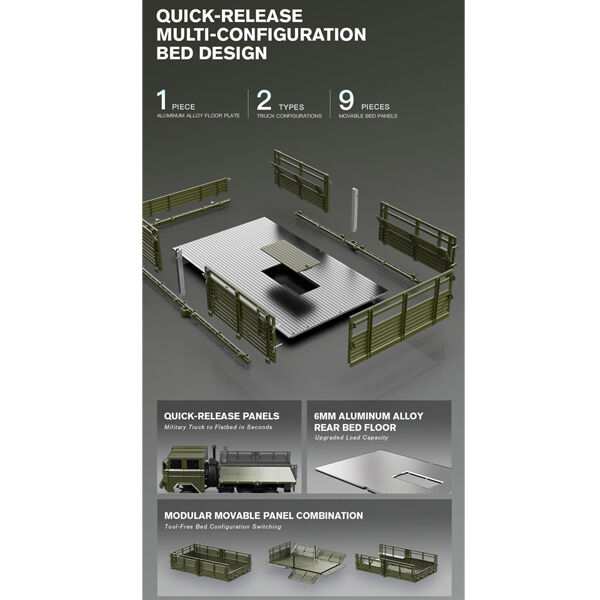

Modular Quick Release Cargo Bed

The cargo bed features tool free removable panels, allowing rapid reconfiguration for different load types and operational scenarios.

Technical Specifications

Scale: 1/10

Body: Injection moulded ABS

Chassis Rails: 6 mm CNC machined high strength aluminium

Suspension: Steel leaf spring system

Linkages: 8 mm stainless steel pull rods

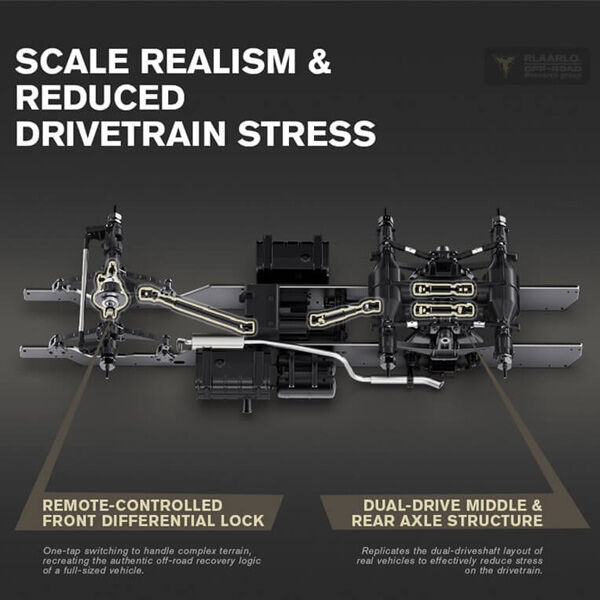

Drivetrain: 6WD (six wheel drive) with front differential lock

Motor: 4282 FOC brushless motor

ESC: 140A FOC brushless electronic speed controller

Steering Servo: 45 kg high torque waterproof metal gear servo

Radio System: 2.4 GHz 6 channel transmitter

Control Range: Approximately 350 m

Operating Voltage: 6V - 11.1V

Top speed: 21–42 km/h (terrain and setup dependent)

Length: 800 mm

Width: 321 mm

Height: 331 mm

Wheelbase: 493 mm

Tyre size: 126 mm × 40 mm

Battery Compartment maximum size: 165 × 50 × 32 mm

Battery: 3S 11.1v or 4S 14.8v battery (not included)

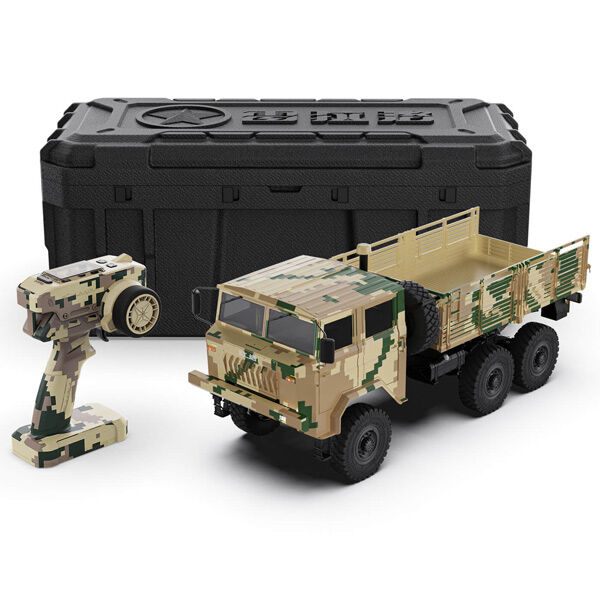

What's in the box

Rlaarlo HY6 Brushless Edition Truck with 2.4ghz Radio System

User Manual, Decals and basic hex tools

Needed to complete

Battery

Charger

4 x AA batteries for the transmitter
