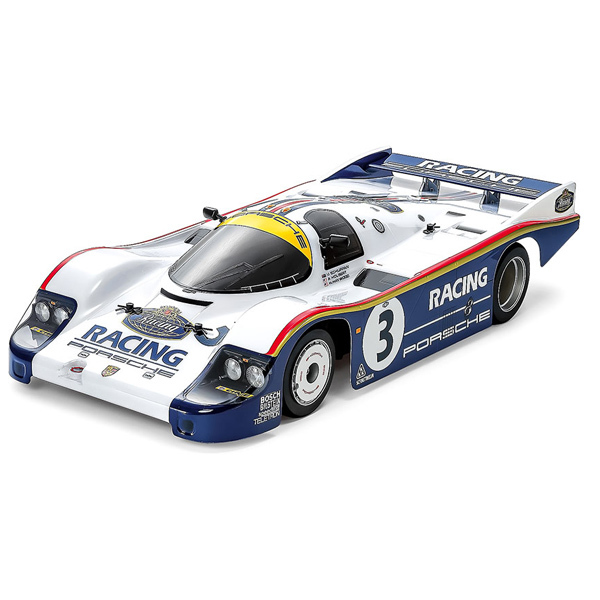

This R/C model assembly kit recreates the legendary Porsche 956, which was developed along with the start of Group C regulations for endurance races in 1982 and proved a dominant presence, taking maker and driver crowns in 1982 and then astonishingly winning all 7 races on the 1983 endurance circuit. The aerodynamically refined body is recreated in lightweight polycarbonate plastic, with plenty of detail provided by separate parts for the rear wing, head- and taillights. Stickers are included in the kit to recreate sponsor logos, body side pin stripes and more. Choose whether to finish your model as car #1, #2 or #3.

Direct-Drive 2WD Chassis

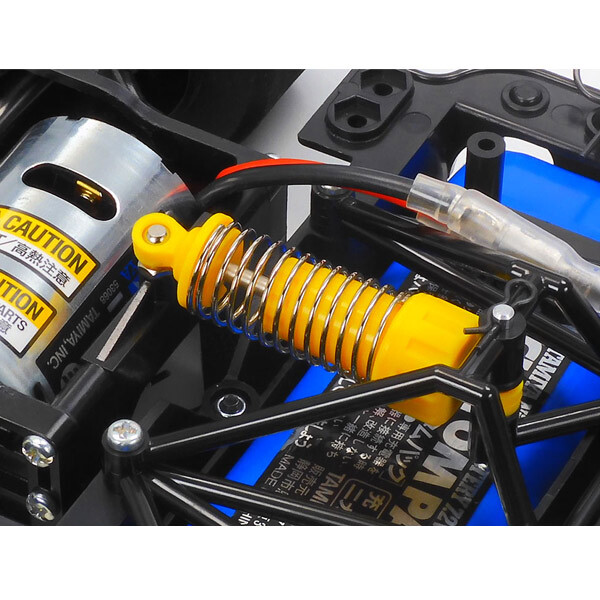

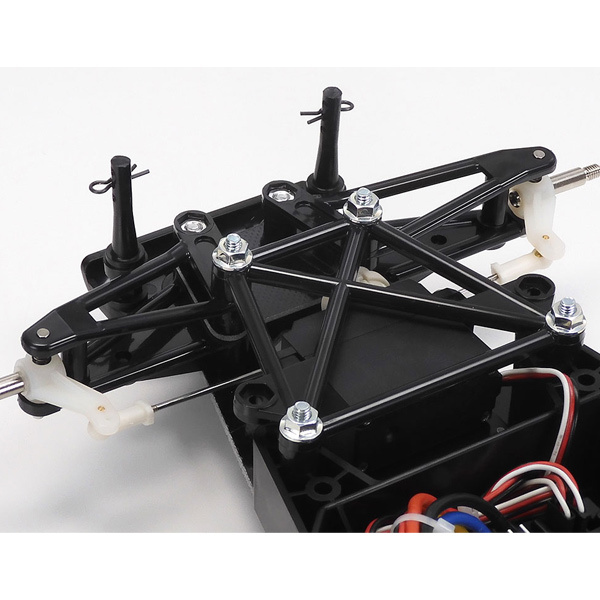

Based around an ABS plastic bathtub, with space frames front and rear and FRP plate, the chassis is a composite design that offers a rigid base to back up the fluid suspension: the result is a crisp, responsive drive. At the front, it has an independent coil sprung king pin suspension setup, while the rear rigid suspension is a 3 point design with a 1.5mm thickness FRP T-bar and CVA oil damper; teamed up with sponge tyres front and rear, they ensure superb road holding. Additionally, use of spacers allows two different front and three rear ground clearance setups. The 2WD direct drive setup transmits power straight to the rear wheels via a spur gear, with a built-in ball differential giving limited slip diff effect.

Specifications

Length: 483mm, width: 207mm, height: 108mm

Wheelbase: 270mm

Tyre width/diameter: 28/64mm (front), 45/68mm (rear)

Bathtub frame with space frame and FRP plate

Transverse motor direct drive 2WD

Ball differential

2 piece steering tierod

3-point suspension with CVA oil damper

Gear ratio = 5.00:1

Sport-Tuned motor

Required to complete

2-channel R/C system w/ESC

R6/AA/UM3 batteries for transmitter

Battery pack & charger
