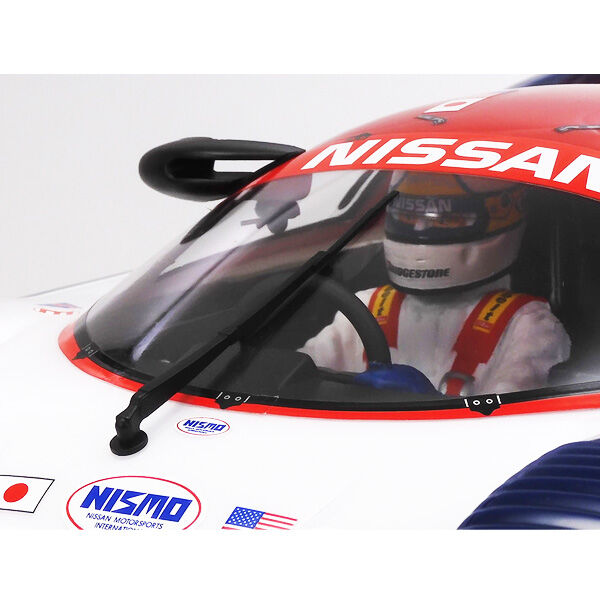

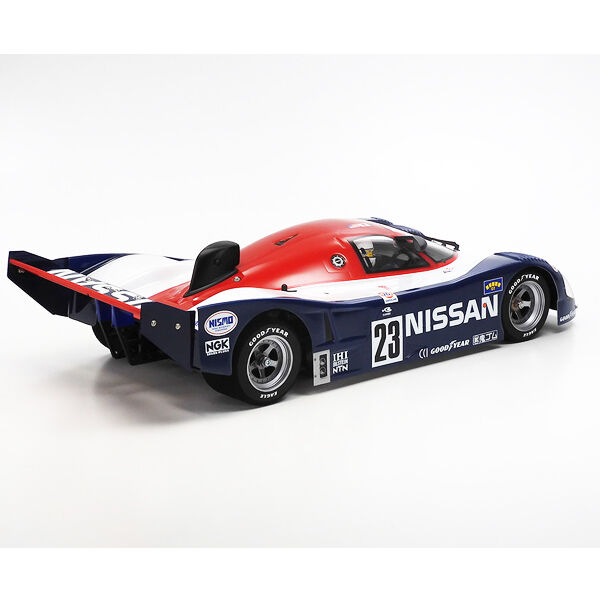

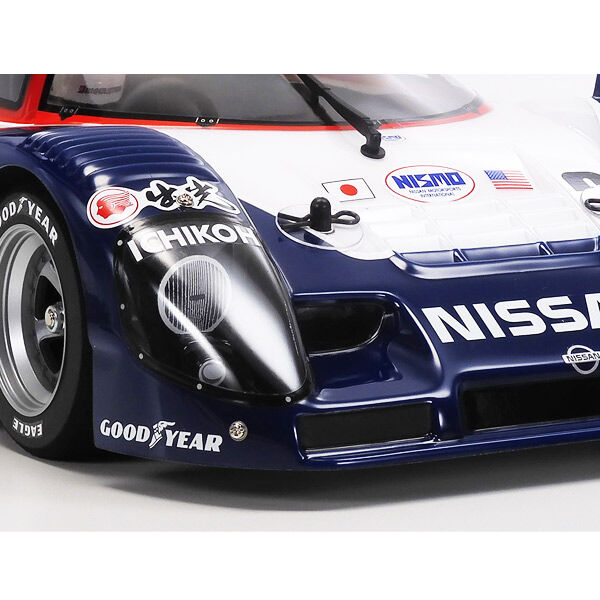

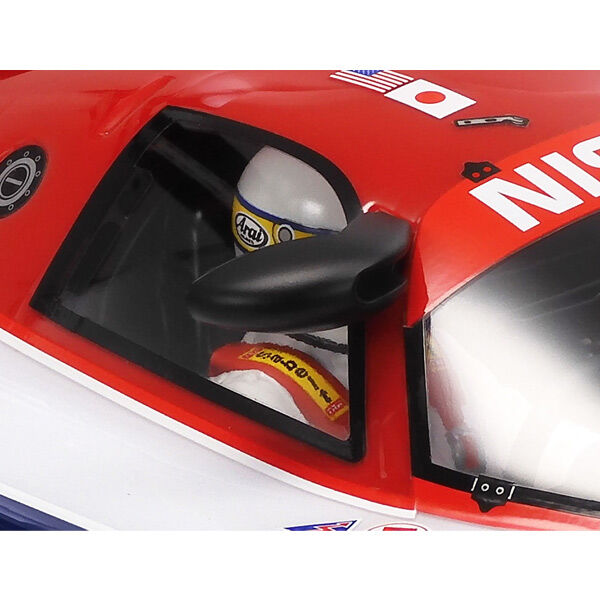

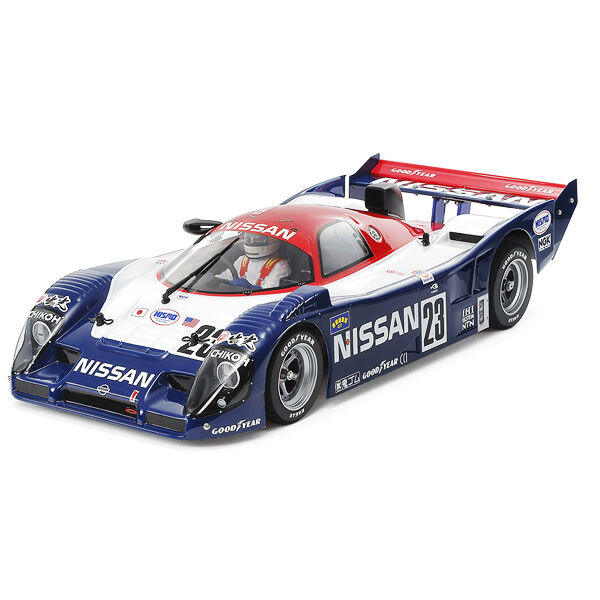

This R/C model assembly kit recreates the Nissan R91CP, which followed up its 1991 All Japan Sports Prototype Championship triumph with a victory in the 24 Hours of Daytona in 1992. The aerodynamic, sleek form is recreated in lightweight and durable polycarbonate plastic. The rear induction pod, side mirror on the driver’s side and windshield wiper are separately moulded and add extra realism. Stickers are included for sponsor logos and racing number, and masking stickers for windows and headlights. The cockpit is realistically recreated with a steering wheel and shift lever; the driver figure has 3 marking options. The direct drive 2WD chassis gives a crisp, responsive drive and allows a range of settings for features such as ground clearance, chassis roll and rear oil damper. Take this chance to get your hands on a champion!

Direct Drive 2WD Chassis

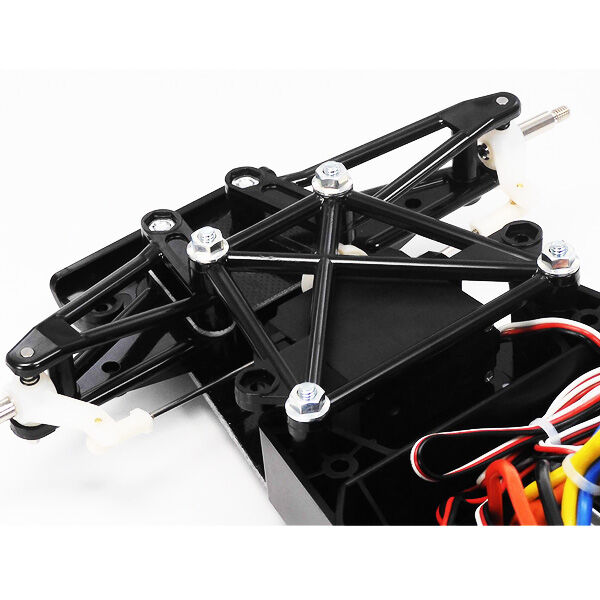

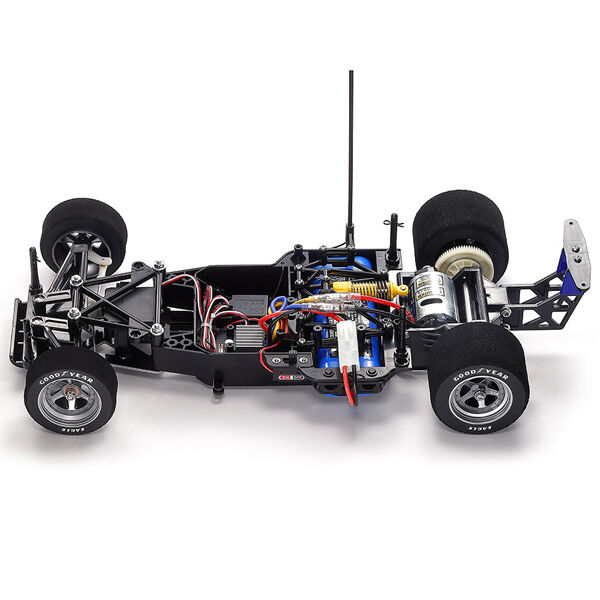

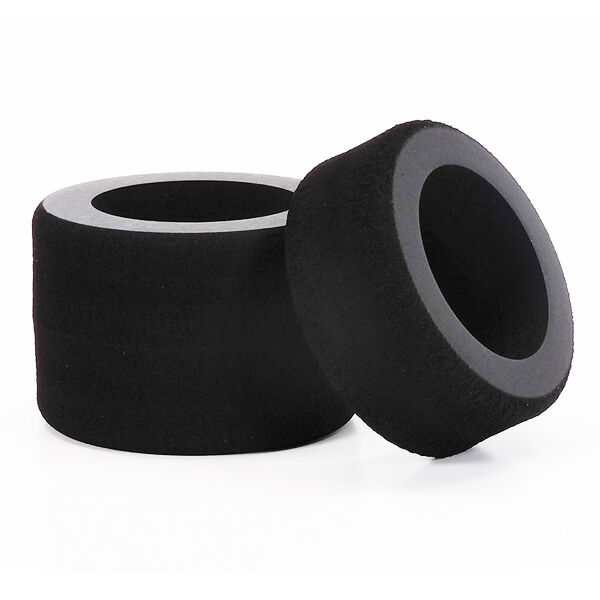

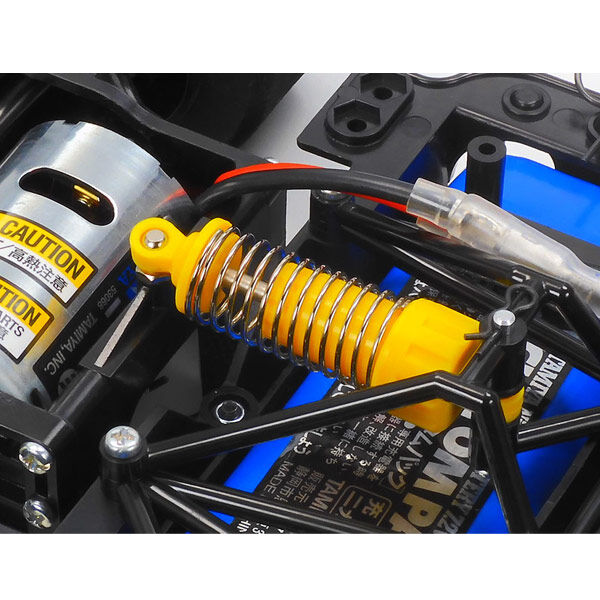

Based around an ABS plastic bathtub, with space frames front and rear and FRP plate, the chassis is a composite design that offers a rigid base to back up the fluid suspension: the result is a crisp, responsive drive. At the front, it has an independent coil spring king pin suspension setup, while the rear rigid suspension is a 3 point design with a 1.5mm thickness FRP T-bar and CVA oil damper; teamed up with sponge tyres front and rear, they ensure superb road holding. Additionally, use of spacers allows two different front and three rear ground clearance setups. The 2WD direct drive setup transmits power straight to the rear wheels via a spur gear, with a built in ball differential giving limited slip diff effect.

Specifications

Length: 480mm, width: 204mm, height: 109mm

Wheelbase: 270mm

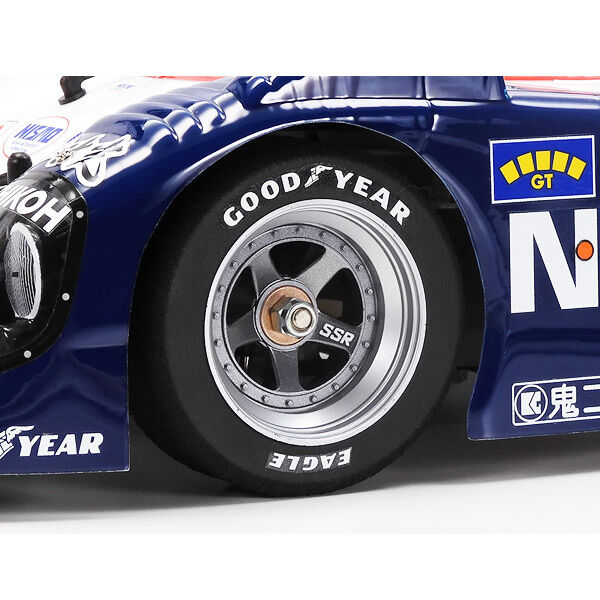

Tyre width/diameter: 28/64mm (front), 45/68mm (rear)

Bathtub frame with space frame and FRP plate

Transverse motor direct drive 2WD

Ball differential

2 piece steering tie rod

Independent coil spring king pin suspension (front), 3 point suspension with a 1.5mm thickness FRP T-bar and CVA oil damper (rear)

Gear ratio = 5.00:1

Required to complete

2 channel radio

Steering servo

ESC

7.2-7.4 volt battery & battery charger

Tamiya PS and Acrylic paint
