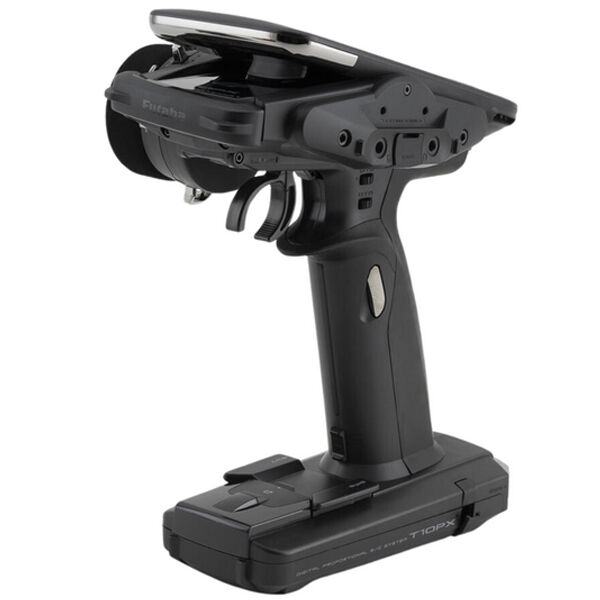

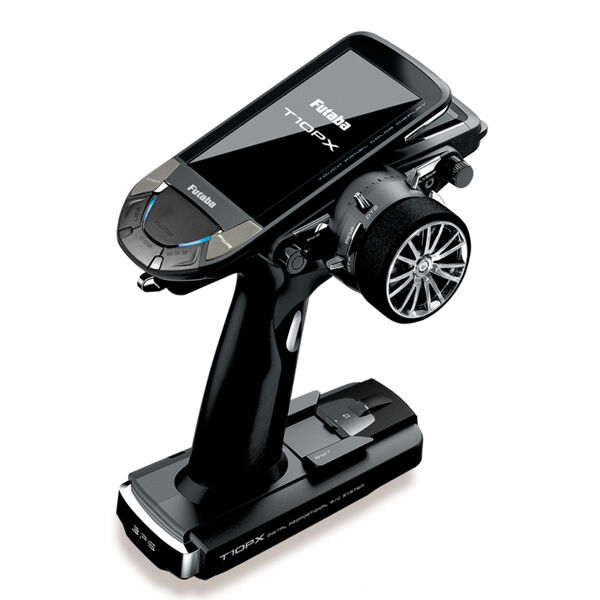

Introducing the Futaba 10PX, your ultimate remote control transmitter for precision and performance. At its heart lies a remarkable full colour touch screen LCD, boasting a generous 4.3 inch size that's perfect for both indoor and outdoor use. With transreflective technology, it ensures crystal clear visibility in any lighting condition.

Beyond the stunning display, the Futaba 10PX packs a punch with 10 channels, powered by the lightning fast F-4G system, providing telemetry with unrivaled responsiveness.

Need even more flexibility? The S.BUS2 system allows you to operate up to 10 channels simultaneously. Plus, you can customise your experience by utilising the T-FHSS MINIZ system, giving you the power to tailor your setup with the Kyosho Mini-Z Evo dedicated receiver.

In addition to these cutting edge features, the 10PX offers a wealth of functionality, from brake and steering mixing for large cars to 4WS mixing for crawlers and even gyro sensitivity adjustments. With its LiPo battery compatibility, firmware updates via micro SD card, and versatile button configuration, this transmitter empowers you to take control like never before. Elevate your RC experience with the 10PX – it's the ultimate tool for true enthusiasts.

NOTE: When the 10PX is powered on, bright dots may appear on the display. The display contains an extremely large number of Thin-Film-Transistors (TFT) and is manufactured using high-precision technology. Any bright dots that may appear on the display are intrinsic of the TFT manufacturing.

Features

Full color touch screen LCD

F-4G system & telemetry

Up to 10 channels can be operated by using the S.BUS2 system

By setting to the MINIZ system in the receiver setting menu, you can use Kyosho

Mini – Z Evo dedicated receiver RA-42 (Sold Separately)

Software can be updated via microSD card (Sold Separately)

40 model memory with allowance for 15 character names

Allows for the use of an optional LiPo

Brake mixing for large cars

Steering mixing is independent allowing for precise left and right steering servo settings

4WS mixing for crawlers

Dual ESCs mixing allows for two ESCs to be controlled independently

The sensitivity of Futaba car gyros can be adjusted from the T10PX

Tank mixing

CPS LED light mixing

Futaba S.BUS servo allows setting of the parameters of select Futaba S.BUS servo

Includes

T10PX Transmitter

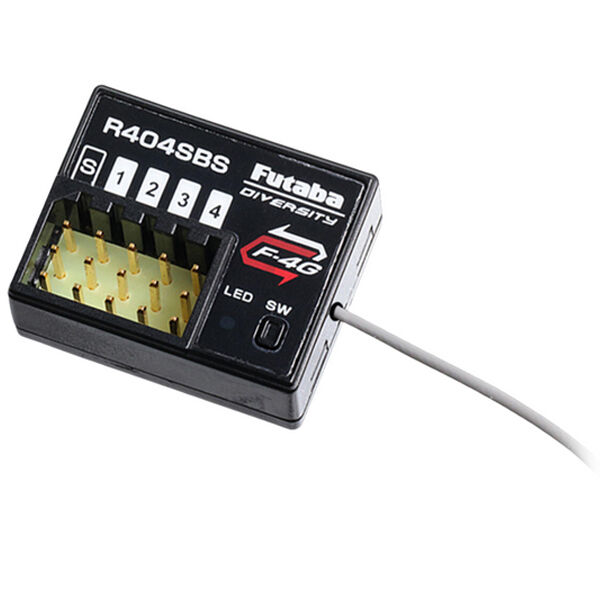

2 x R404SBS  Receiver

Futaba Lion 2000mah Battery

Wheel offset adapter two size (APA)APA Mounting screws *Spare screws are also included

Wheel adapter 32 deg

Wheel Angle spacer 5 deg

Large diameter steering wheel

Trigger guard (Lx1/Rx1)

Grip rubber x1

Blind paddle x2

Hex wrench

Short manual

Charge Lead

Specifications

Frequency: 2.4GHz @ 100mW

Protocols: T-FHSS-SR, T-FHSS, S-FHSS, F-4G

Voltages: LiPo: 7.4V, LiFe: 6.6V

Antenna Type: 1/2 Dipole

Receiver: Voltage: 3.7-7.4V DC

Dimensions: 1.00x0.81x0.42in (25.5x20.7x10.6mm)

Weight: 7.2g (0.25oz)
