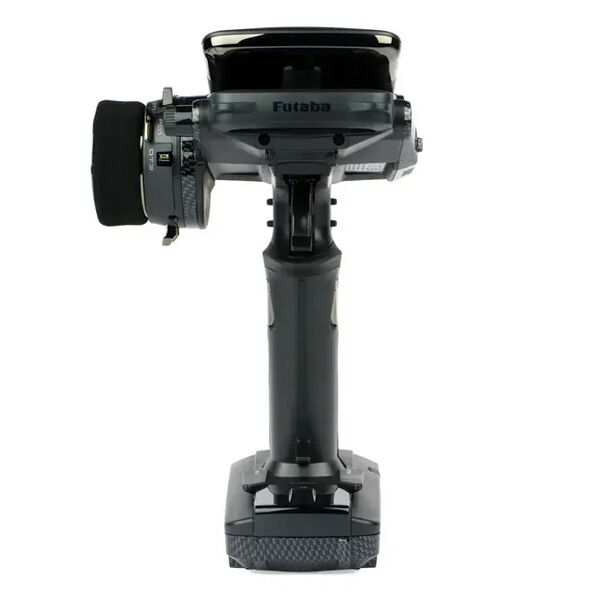

The Futaba 10PXR is Futaba's flagship competition grade surface radio system, designed for serious racers who demand the highest level of precision, speed and customisation. Featuring a 10 channel architecture, advanced F-4G transmission technology, full telemetry support and a vibrant 4.3 inch colour touchscreen, the 10PXR delivers elite level performance for RC cars, trucks, crawlers, tanks and other surface vehicles.

Powered by Futaba's fourth generation F-4G telemetry system, the 10PXR provides up to 30% faster response when paired with compatible UR servos. The ultra fast communication system delivers lightning fast response and near zero latency, helping drivers maintain maximum control in competitive racing situations.

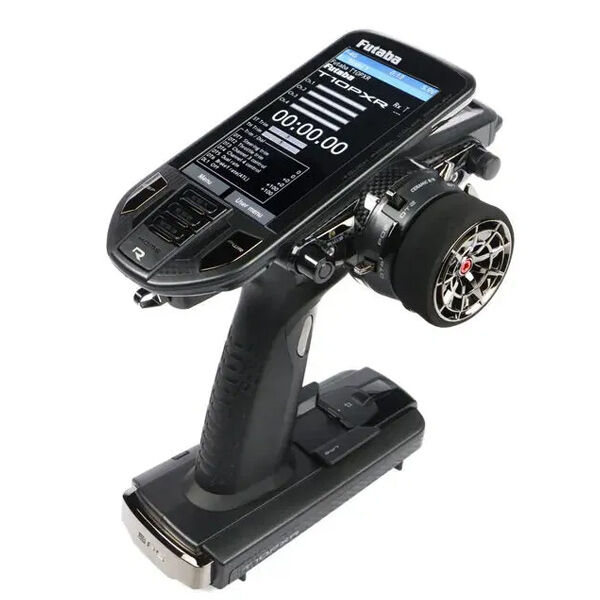

The large HVGA transflective TFT-LCD touchscreen offers excellent visibility both indoors and outdoors while providing intuitive access to advanced programming features. With support for 40 model memories, users can easily manage multiple vehicles from a single transmitter, making it ideal for racers and hobbyists with diverse RC collections.

Supporting F-4G, T-FHSS, T-FHSS SR, FHSS and Mini-Z protocols, the 10PXR offers exceptional versatility across a wide range of RC applications. Advanced mixing functions include brake mixing, steering mixing, 4 wheel steering mixing, dual ESC crawler mixing, gyro mixing, tank mixing and CPS lighting control.

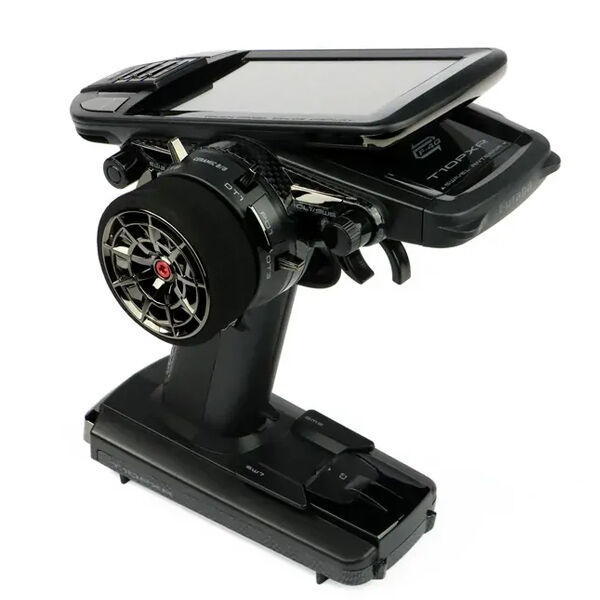

Ergonomically refined for extended use, the transmitter features ceramic bearings on both the steering wheel and trigger, adjustable steering wheel position, trigger adjustment, tension adjustment and an alternative narrow grip option. The transmitter can also be converted for left hand operation.

Additional premium features include steering trim memory, vibration alerts, voice feedback, USB connectivity, microSD card support, S.Bus servo programming, MC-Link ESC compatibility, throttle speed adjustment and extensive dial and switch assignment capabilities.

Transmitter

• Channels: 10
• Model Memory: 40 Models
• Display Type: HVGA TFT-LCD Touchscreen
• Display Size: 4.3 Inch
• Transmission Modes: F-4G, T-FHSS, T-FHSS SR, FHSS, Mini-Z
• Telemetry: Yes
• Software Updates: MicroSD Card
• Data Logging: MicroSD Card Compatible
• USB Connectivity: Yes
• Voice Feedback: Supported
• Vibration Alerts: Supported

Performance Features

• F-4G Ultra Fast Response System
• Up to 30% Faster Response with UR Servos
• 15 Point Response Adjustment System
• Steering Trim Memory
• Throttle Speed Adjustment
• Advanced Telemetry Support

Mixing Functions

• Brake Mixing
• Steering Mixing
• 4WS Mixing
• Dual ESC Mixing
• Gyro Mixing
• Tank Mixing
• CPS Mixing

Adjustments

• Wheel Offset Adjustment
• Wheel Mounting Angle Adjustment
• Throttle Trigger Position Adjustment
• Trigger Tension Adjustment
• Switch Assignment Function
• Dial Assignment Function
• Trim Lock Function
• Dial Lock Function
• Left Hand Conversion Compatible

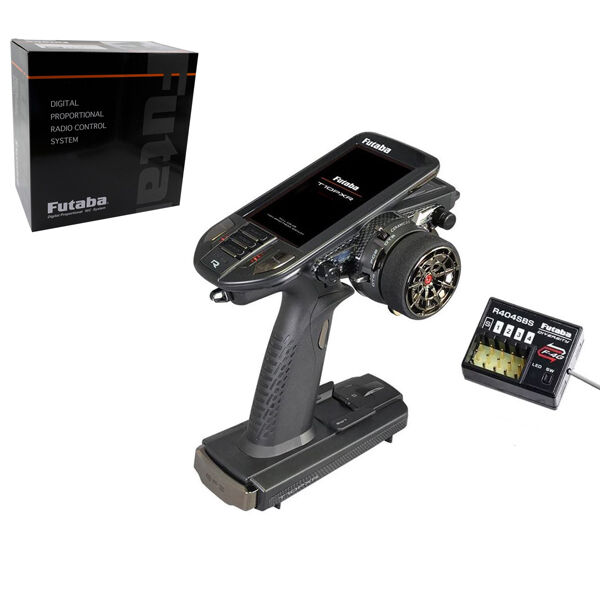

Included Items

• Futaba 10PXR 10 Channel Transmitter

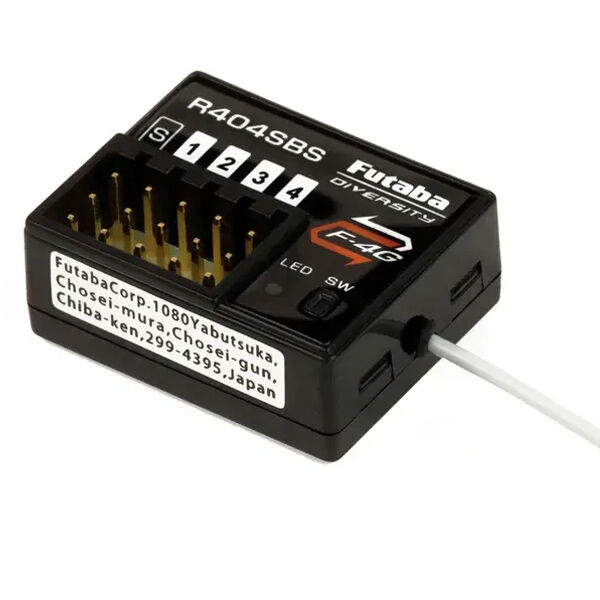

• Futaba R404SBS Receiver

• Instruction Manual

Required (not included)

 4 x AA Batteries
