The Futaba 3PV 2.4GHz surface radio system with R314SB receiver is designed for RC cars and trucks needing reliable steering, throttle and tuning control with T-FHSS telemetry support.

This transmitter and receiver set suits drivers wanting a sport-level Futaba radio with model memory, trim adjustment, end point adjustment, ABS braking support and surface mixing functions. The included R314SB receiver adds T-FHSS telemetry capability and S.BUS2 support for compatible electric and surface RC installations.

Product Type: 2.4GHz surface radio transmitter and receiver set

Application: Surface RC cars and trucks

Frequency: 2.4GHz

Channels: 3 + 1 channel system

Fourth Channel Use: Mixing functions only

Compatible Systems: T-FHSS, S-FHSS and FHSS

Communication Method: Two-way T-FHSS and one-way S-FHSS or FHSS

Model Memory: 10 models

Transmitter Power Requirement: 4 x AA dry cell batteries, 6V

Optional Transmitter Battery Support: Compatible Futaba NiMH or LiFe transmitter packs where used according to the manual

Transmitter Current Drain: 100mA or less

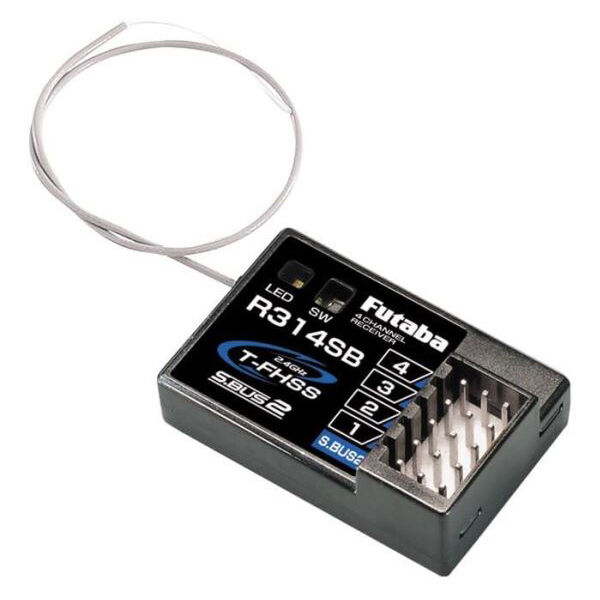

Included Receiver: Futaba R314SB

Receiver System: T-FHSS 2.4GHz

Receiver Type: S.BUS2 4-channel receiver for model cars

Receiver Rated Voltage: 4.8V to 7.4V

Receiver Usable Voltage: 3.5V to 8.4V

Receiver Dimensions: 35.1 x 23.2 x 8.5mm

Receiver Weight: 6.6g

Intended Use: RC racing, bashing, crawling, drifting and general surface model control

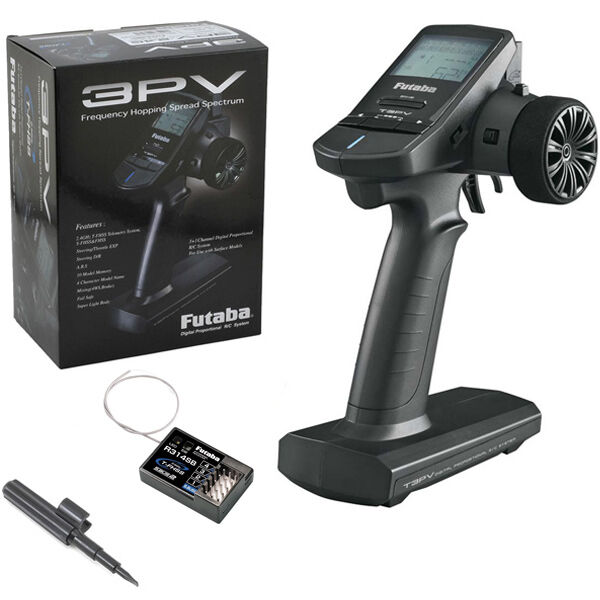

Includes

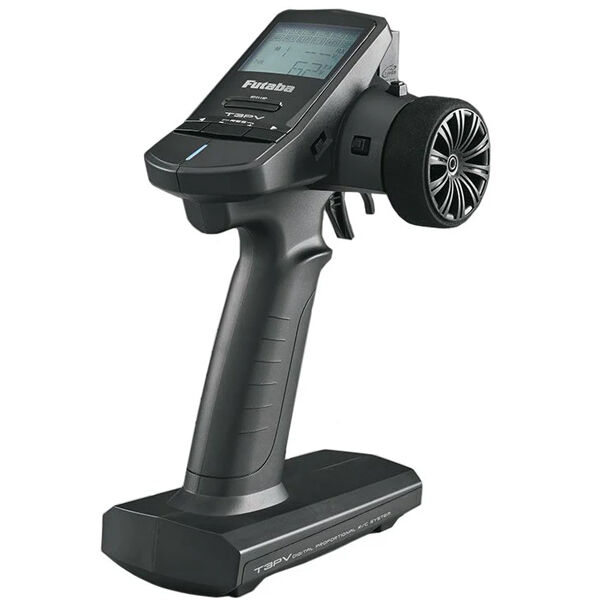

1 x Futaba 3PV 2.4GHz surface transmitter

1 x Futaba R314SB T-FHSS telemetry receiver

1 x Instruction manual

Requires (not included)

AA 1.5v Alkaline Batteries (4 pcs)
