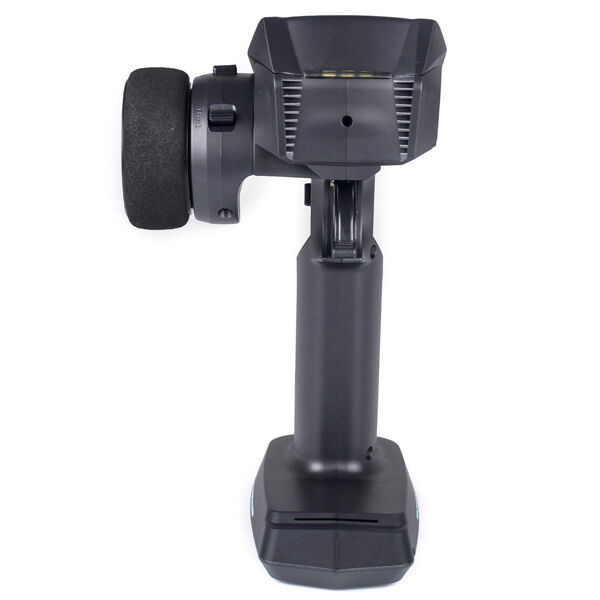

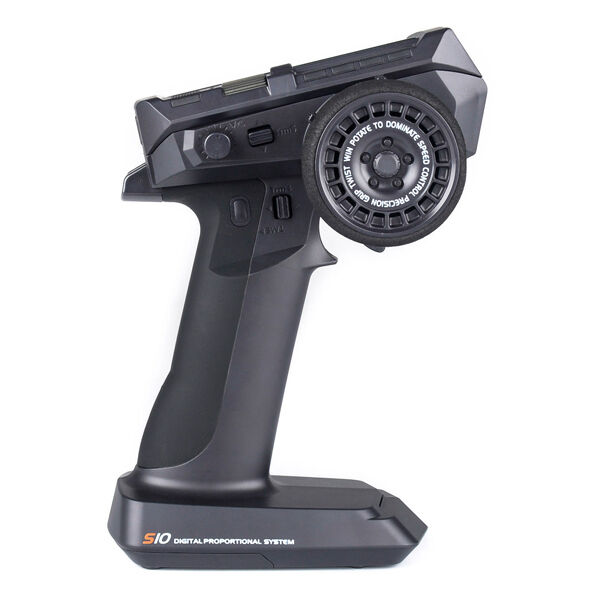

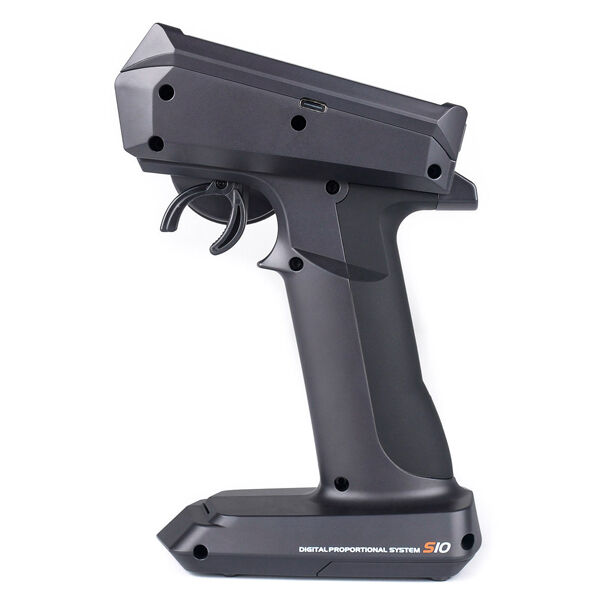

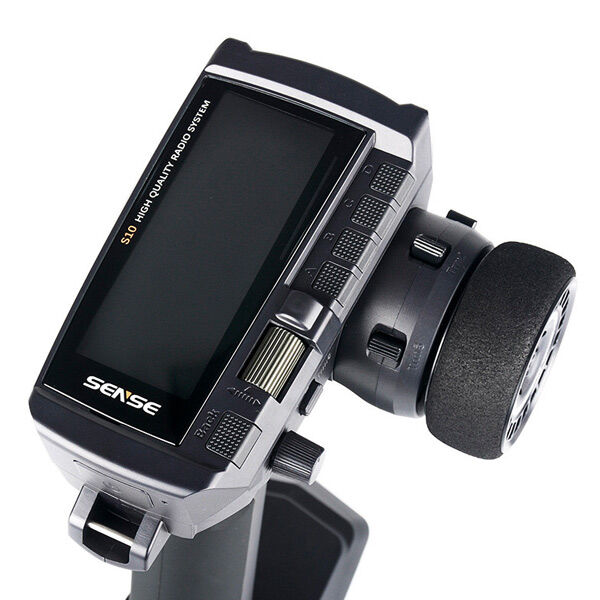

The Sense S10 transmitter and S10RX receiver features the 2.4GHz automatic frequency hopping system with support for up to 10 channels, including four ultra fast response channels for precise control. Equipped with a high resolution display and user-friendly interface, the S10 offers simple setup, real time monitoring, and built-in presets for Crawlers, Nitro Cars, Electric Cars, and Boats.

Features

Uni/ bidirectional transmission

Built in data passthrough

Independent identification system

User friendly interface design

Wi-Fi firmware updates

Dual battery power and backup

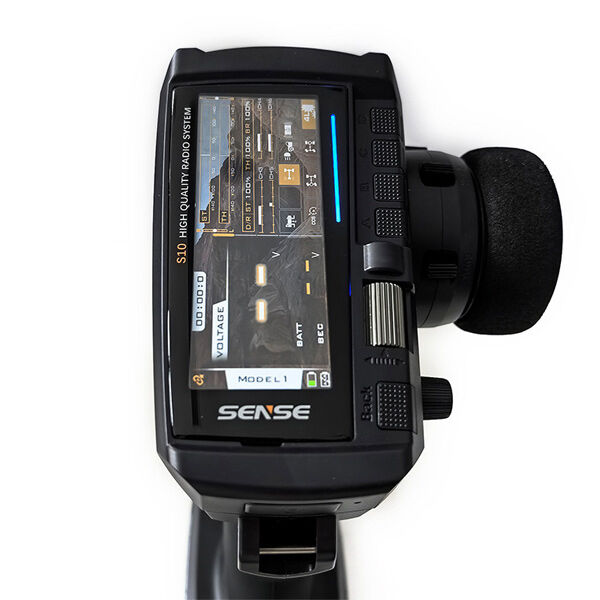

376x960 IPS LCD screen with wide viewing angles

Accent LED lights with 5 user adjustable colours

40 model memory

Audio/ vibe alerts

Customisable model setup

USB-C compatible

Powerful programming capabilities with 12 switch/ trim/ knob options available

Transmitter Specifications

Model - S10

Compatible Receiver - S10RX

Compatible Models - Car, Boat

Number of Channels - 10

RF Frequency - 2403 MHz - 2480 MHz

Transmit Power - <100mW

Wireless Protocol - SFHD-SD

Low Voltage Alarm LiPO - 3.3 V; AAA4.25 V

Data Interface - USB Type-C

Charging Interface - USB Type-C

Antenna Type – Built in Single Antenna

Display - 3.13-inch, 376 x 960 full dot matrix IPS screen

Channel Resolution - 4096

Input Power - 1S 2600mAh LiPo Battery + 4x AAA Batteries

Control Range - >200m (open, unobstructed ground distance)

OTA Update - Supported

Operating Temperature - -10℃ ~ +60℃

Operating Humidity - 20% ~ 95% RH

Dimensions - 128 x 101 x 188 mm

Weight (without batteries) - 370g

Receiver Specifications

Model - S10RX

PWM Channels - 10

RF Frequency - 2403 MHz - 2480 MHz

Wireless Protocol - SFHD-SD - Compatible - S10

Antenna Type – External Single Antenna

Operating Voltage - 5 - 9 V DC

Data Output - PWM / PPM

Operating Temperature - -10℃ ~ +60℃

Operating Humidity - 20% ~ 95% RH

OTA Update - Supported

Dimensions - 34.5 x 26 x 13.6 mm

Weight - 10g

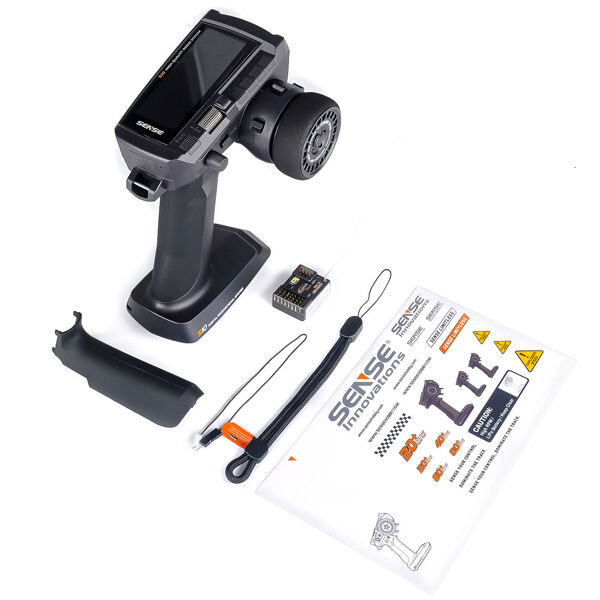

What's Included

Sense Innovations S10 10-Channel Transmitter

Installed 18650 Lithium Battery

Small Silicone Grip (Installed)

Medium Silicone Grip

S10RX 10-Channel Receiver with Gyro

2 × Receiver Antenna Protectors

USB Type-C Cable

Battery Voltage Detector Cable (BVD)

Wrist Strap

Quick Start Guide

Required Items (not included)

4 × AAA Batteries for optional backup power
